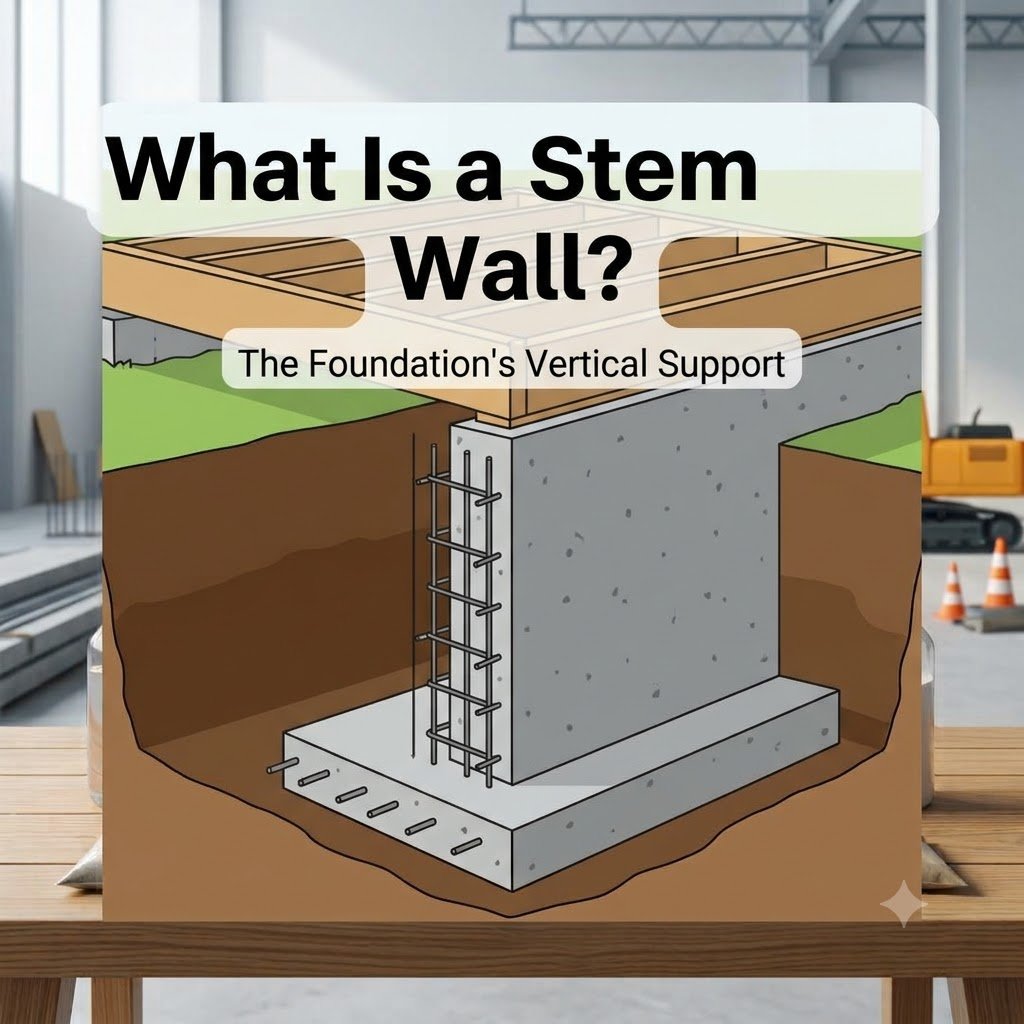

A stem wall is a short concrete wall that sits on top of a footing and extends up to the height of the finished floor, creating the vertical connection between the foundation footing below grade and the structure above. Stem walls typically stand 12 to 36 inches (300 to 900 mm) tall and 6 to 12 inches (150 to 300 mm) thick, and are common on sloped sites, crawl space foundations, and slab-on-grade construction where the floor needs to sit above grade for drainage or frost protection.
How Do You Size a Stem Wall?
Stem wall thickness is governed by the load above it and the unsupported height — a taller stem wall needs to be thicker or more heavily reinforced to resist lateral soil pressure and bending, the same way a taller unsupported column needs a wider base. A common residential stem wall for a single-story, slab-on-grade home is 8 in (200 mm) thick and 18–24 in (450–600 mm) tall, matched to an 8 in (200 mm) wide footing below it, though taller stem walls on sloped lots or in seismic zones need engineered thickness and reinforcement.
Worked example: a slab-on-grade house on a lot that slopes 18 in (450 mm) across the building footprint might need a stem wall averaging 18 in (450 mm) tall on the low side to bring the floor level, tapering down to a few inches on the high side, with the footing beneath sized separately based on soil bearing capacity.
The concrete stem wall calculator takes wall length, height, and thickness and returns the concrete volume needed, which is the number to confirm before ordering, since stem wall volume is usually calculated separately from the footing it sits on.
Why Use a Stem Wall Instead of a Standard Foundation?
A stem wall solves two problems that a footing alone can’t: getting the finished floor above grade, and creating a continuous vertical bearing surface for the walls above. Without a stem wall, a slab poured directly at grade level, called a monolithic slab, sits close to ground moisture and needs the footing itself to be much wider and more heavily detailed at the perimeter to compensate; a stem wall raises the floor and lets water drain away from the structure instead of pooling against it.
On sloped sites, stem walls also solve a grading problem — rather than stepping a foundation down a slope in a series of separate footings at different depths, a stem wall of varying height, taller on the downhill side and shorter uphill, lets the top of the wall stay level while the footing beneath follows the slope, or steps down in defined increments.
Structurally, a stem wall carries the building’s vertical load down to the footing while also resisting lateral pressure from the soil backfilled against it — particularly relevant for crawl space and basement construction, less so for a shallow slab-on-grade stem wall, which sees much lower lateral soil load.
Common Mistakes
Under-sizing stem wall thickness on a taller wall, treating an 18 in stem wall the same as a 30+ in one, ignores that lateral soil pressure and bending moment both increase with height, not linearly with a simple rule of thumb. Taller stem walls need engineering review, not a copy-paste of the dimensions used on a shorter wall elsewhere on the same job.
Backfilling against a stem wall before it has cured to adequate strength, often to keep a schedule moving, risks cracking or bowing the wall under the lateral soil load before the concrete can resist it. Most stem walls need at least 7 days of cure, longer for taller or thinner walls, before backfill loads are applied.
Missing or undersized vertical reinforcement — the dowels connecting the stem wall to the footing below and the structure above — is a common oversight on DIY and small residential jobs. Without it, the stem wall relies entirely on the concrete’s own tensile strength at the cold joint with the footing, which is far weaker than a properly doweled connection.
Not accounting for a sloped lot correctly, using a single stem wall height across the whole perimeter instead of stepping or tapering it to the actual grade change, either leaves the low side under-height, causing drainage problems, or the high side excessively tall, wasting concrete and adding unnecessary lateral load.
Related Calculators You Might Need
A stem wall’s design starts with the footing beneath it, so check the concrete footing calculator first to confirm that dimension before sizing the wall above it. On a sloped lot, the frost depth/footing depth calculator helps confirm the footing depth is adequate across the full slope, not just at one point. Vertical reinforcement should be checked with the rebar/reinforcing steel calculator once wall height and thickness are set. And if this stem wall is supporting a basement rather than a crawl space, compare it against the concrete foundation wall calculator, since basement walls carry substantially more lateral load and are sized differently.
Frequently Asked Questions
What is the purpose of a stem wall?
A stem wall raises the finished floor above grade for drainage and frost protection, and provides a continuous, level bearing surface for the structure above even when the footing beneath follows a sloped or stepped grade. It’s the vertical link between the footing, which does the structural work of spreading load into the soil, and the framing or slab above.
How tall should a stem wall be?
Most slab-on-grade residential stem walls are 12 to 24 in (300 to 600 mm) tall, enough to get the finished floor above grade and provide drainage clearance. Crawl space stem walls run taller, often 24 to 36+ in (600 to 900+ mm), to leave working clearance underneath the floor framing. Height on a sloped lot varies around the perimeter to keep the top of the wall level.
Is a stem wall the same as a foundation wall?
They’re related but not identical — a stem wall is typically shorter, usually under 3 ft (900 mm), and used mainly for slab-on-grade and crawl space construction, while a foundation wall usually refers to a taller wall enclosing a full basement, carrying significantly more lateral soil pressure and requiring different reinforcement, thickness, and drainage detailing to resist that added load safely.
How much concrete do I need for a stem wall?
Multiply the wall’s length, height, and thickness to get volume, then convert to cubic yards or cubic meters, but do this separately from the footing below, since the two are usually different depths and widths and are often poured at different times. Use the concrete stem wall calculator to get the volume directly from your wall dimensions, including a standard waste allowance.
Do you need rebar in a stem wall?
Yes, in almost all cases — vertical dowels connect the stem wall to the footing below, and horizontal reinforcement resists cracking from shrinkage and lateral soil pressure once backfill is placed. Exact bar size and spacing depend on wall height, thickness, and local code, but an unreinforced stem wall taller than a few inches is a code violation in most US jurisdictions.
